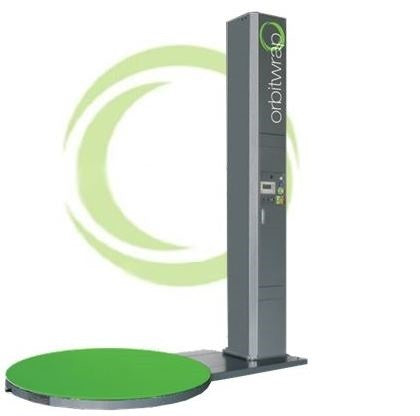

Stretchwrap / Pallet Wrapping Machines

Stretchwrap / pallet wrapping machines are used to apply stretch film consistently around unitized loads so cartons, bags, and irregular products can be moved and stored with reduced shifting. In many operations, the goal is repeatability: a stable load with predictable containment force, minimal film waste, and a wrapping process that is safe for operators and compatible with forklifts and pallet jacks.

Stretchwrap / Pallet Wrapping Machines — Helpful Guide

This category focuses on accessories and services that support pallet wrapping equipment. The items below help you install, commission, and operate a wrapping station efficiently, and improve day-to-day loading access.

Installation, commissioning, and operator onboarding

• Orbitwrap - Installatiion & Training
  On-site or scheduled support typically covers machine placement, basic setup, verification of safe operation, and operator instruction. Training commonly includes how to start/stop cycles, set wrap parameters, load film, and perform routine checks so the wrapper can be used consistently across shifts.

Loading access and material handling aids

• Orbitwrap - Stretch Wrapping M/C Ramp
  A ramp provides a gradual approach to the wrapping platform so pallet jacks and similar equipment can roll loads into position. Ramps are often used when a pit is not available or when floor-level loading is preferred for flexibility and reduced installation complexity.

Case study: reducing film waste and load damage through standardization

A common challenge in shipping departments is variation: different operators choose different wrap patterns, overlap, and tension settings. The result can be inconsistent load stability, excess film usage, and occasional product damage from over-tightening or poor corner coverage. By standardizing setup and training, many facilities can reduce variability and improve outcomes without changing the stretch film itself.

In a typical improvement project, the team first documents the current process (film type, number of wraps at the base and top, carriage tension or pre-stretch settings, and any manual reinforcement). Next, they define a target wrap recipe for each load profile (light, heavy, tall, or unstable). Finally, they train operators to use the same recipe and verify results with simple checks such as corner stability, pallet-to-product friction, and safe forklift handling. The key is not “more wrap,” but “the right wrap” applied the same way every time.

How to choose the correct pallet wrapping setup

Even when you are selecting an accessory or service rather than a full machine, it helps to evaluate your wrapping station as a system: the load, the handling method, the floor layout, and the people who will run it. Use the considerations below to decide what support will have the biggest impact.

1) Define your loading method (forklift vs pallet jack)

If loads are typically placed with a forklift, the wrapper can often be positioned to allow direct placement onto the platform. If pallet jacks are used frequently, a ramp can improve access and reduce the need for lifting or repositioning. Consider aisle width, turning radius, and whether operators approach the wrapper straight-on or at an angle.

2) Confirm floor conditions and site constraints

Floor flatness, available space, and nearby traffic patterns affect both safety and productivity. A ramp solution can be helpful when you want floor-level loading without cutting a pit, but you still need to ensure there is enough run-up distance for a pallet jack to climb smoothly and stop with the load centered. Also consider drainage, debris, and wet-floor conditions that could affect traction.

3) Match wrap settings to load characteristics

Stable wrapping depends on the relationship between film stretch, overlap, and the load’s geometry. Tall or narrow loads may need more attention to top containment and consistent overlap. Heavy loads may require stronger containment at the base to prevent shifting during acceleration and braking. Irregular loads often benefit from slower rotation and careful film placement to avoid “bridging” across voids.

4) Plan for repeatability across shifts

Many wrapping issues are not equipment failures; they are process drift. A structured installation and training session can help establish standard operating procedures: where to stage pallets, how to inspect film rolls, how to thread the film path correctly, and how to recognize when a load needs a different wrap recipe. Repeatability is especially important when multiple operators share the same wrapper.

5) Build a simple maintenance and inspection routine

Routine checks help prevent downtime and inconsistent wraps. Typical daily or weekly tasks include cleaning the film carriage area, checking for loose fasteners, verifying emergency stop function, and inspecting wear points that could affect film tracking. Keeping a short checklist near the machine helps operators catch issues early and supports safer operation.

Ramp use and layout tips for safer, smoother loading

A ramp can improve access, but it should be integrated thoughtfully into the work area. The goal is to reduce sudden transitions and awkward maneuvers that can lead to load tipping or operator strain.

• Approach alignment: Provide clear floor markings so pallet jacks approach straight and stop with the pallet centered on the platform.
• Traffic separation: Keep pedestrian walkways away from the ramp approach zone to reduce crossing conflicts.
• Surface condition: Maintain clean, dry surfaces to reduce slip risk, especially where stretch film tails or debris can accumulate.
• Stopping distance: Ensure there is enough space to climb the ramp and stop without bumping the wrapper or over-traveling the platform.
• Load stability check: Before wrapping, confirm the pallet is not overhanging excessively and that the load is not leaning.

Common wrapping problems and practical fixes

When wraps fail in transit, the cause is often visible at the wrapper. Use these quick diagnostics to identify what to adjust.

• Film breaks during the cycle: Check for sharp edges on the load, excessive tension, or mis-threading through the carriage path. Reduce tension slightly and add corner protection if needed.
• Loose film or “baggy” wrap: Increase overlap, verify film is stretching as intended, and confirm the film roll is appropriate for the load weight and shape.
• Load shifts on the pallet: Add more reinforcement wraps at the base, improve pallet condition, and ensure the load is squared and stacked correctly before wrapping.
• Top of load unstable: Add top wraps or adjust the wrap pattern to maintain containment higher on the load, especially for tall or lightweight products.
• Inconsistent results between operators: Standardize settings and provide refresher training so everyone uses the same wrap recipe and staging method.

Integrating a pallet wrapping station into your packaging line

Pallet wrapping is often the last step before shipping, so small delays can create bottlenecks. A well-designed station considers staging, scanning/labeling, and outbound flow.

• Staging: Provide space for at least one pallet waiting to be wrapped and one pallet ready for pickup.
• Labeling and documentation: Place printers/scanners where operators can work without stepping into the ramp approach zone.
• Film storage: Store film rolls nearby in a clean, dry area to reduce contamination and handling time.
• Quality checks: Define a quick visual inspection (film tail secured, corners covered, no major gaps) before the pallet leaves the station.

Safety considerations

Wrapping equipment involves moving parts, rotating loads, and material handling traffic. Always follow site safety rules and ensure operators understand safe zones and emergency stops.

• Keep clear of moving components: Do not step onto the platform or into the wrap area during an active cycle.
• Secure loose clothing and PPE: Avoid entanglement hazards near rotating loads and film carriages.
• Use consistent loading practices: Center pallets and avoid wrapping unstable stacks that could tip during rotation.
• Maintain clear sightlines: Ensure the ramp approach and wrapper area are well lit and free of obstructions.
